Samsung Note 2 N7100 0499XXXXX imei repair done 100% tested

Samsung Note 2 N7100 0499XXXXX imei repair done 100% tested

Samsung Note 2 N7100 Model Image:

This tutorial usefully for everyone who working in mobile software related this is tested by me without any risk just simple step following will you done from imei issue not only 049xxx imei but if you have null imei so try from this tutorial you also that problem solution for this solution some needed so you must have that you can't repair imei below mention of required for imei repair so must remember that also check your device battery this is impotent for imei repair and also check device battery, micro usb cable etc all are required mention from below that are all good working well otherwise you can't done this tutorial, this tutorial must read who following this tutorial because this is impotent and must your device rooted this impotent also because if your device not rooted so can't repair imiei any try issue now let's go how to repair imei in samsung note 2 N7100 device.

:: Download AREA ::

Download Samsung Note 2 N7100 Root file here

Download Samsung Note 2 N7100 Recovery file here

Required for Samsung Note 2 N7100:

1. Samsung Note 2 N7100 device with battery charged

2. Samsung Note 2 N7100 Root file or recovery file with tested

3. Micro USB Cable

4. Computer or Laptop

5. Z3x Box

Procedure:

1. Download all are files who required in this device from above link
2. Extract to Desktop or as you like path
3. Open Odin tool and click on PDA or AP button and choose philz_touch_6.48.4-n7100.tar.md5 file
4. Now attach battery in to device
5. Press and Hold Volume Down + Home + Power button for Download Mode
6. Attach Micro USB cable in to device
7. Click on Start Button for flash recovery file
8. Copy UPDATE-SuperSU-v2.00.zip file in to Phone Memory
9. Turn Off device
10. Press and Hold Volume Up + Home + Power button for Recovery
11. Choose UPDATE-SuperSU-v2.00.zip file and install it
12. Enable USB Debugging in Developer Option
13. Attach Micro usb Cable in to device
14. Open Z3x Tool
15. Choose Model N7100
16. Click on Repair Button and fill legally imei Click on Ok button
17. Wait until repair Imei
18. You are done

Samsung Note 2 N7100 Repair Imei in Z3x Screenshot:

Code:

 Selected model: N7100
 Selected port: COM5 Z3X BOX Serial Port
 Selected port speed: 115200
 Waiting ADB device...
 Please, allow USB debugging on phone... OK
 Reading phone info...
 Model: GT-N7100
 Android version: 4.4.2
 Product code: GT2N7100TADINU
 Phone version: N7100DDUFND1
 PDA version: N7100XXUFND3
 CSC version: N7100ODDFND2
 IMEI: 004999010640000
 Phone S/N: RF1D3589GDY
 Checking Super user right... true
 Reading nv data... OK
 Checking magic... OK
 Running zTool, please wait... OK
 Detected new type of security version 0
 Calculating... OK
 Writing nv data... OK
 Rebooting phone... OK
 Repair done
 Done with Samsung Tool v.18.3

Samsung N7100 logo & imei repair done with Samsung Professional tools or odin 100% tested

Samsung N7100 logo & imei repair done with Samsung Professional tools or odin 100% tested

Model :

 Step : 1

• Open Samsung Processional Tools
• First do Reset Reset Dafault EFS see below image

Step : 2

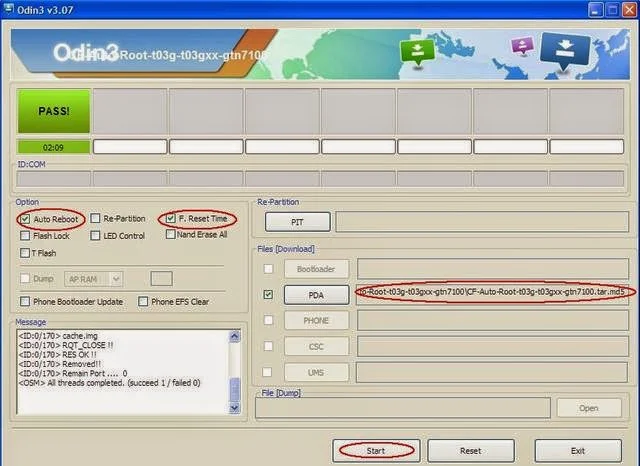

• Open Odin tools
• Tick Auto Reboot or F.Reset Time
• And click on PDA button and choose samsung N7100 Root file
• Last click on Start Button see blow image

Step : 3

• Open Samsung Professinal tools
• Choose model GT-N7100
• Choose Service tools tab
• Tick on Repair IMEI and fill 3556xxxxxxxxxxx
• You are done see blow image

Download Root File from HERE

Credited to Mr : Rotan Sarkar

Samsung N7100 note2 imei null & basband repair solution is here tested.

Samsung N7100 note2 imei null & basband repair solution is here tested.

Imp: if your mobile stuck in bootlook and it does not boot some times.     it also may cause the efs problems.your mobile should compulsory boot if you repair your efs problems.and then

     your imei link will become 004999010640000 like this. and if your imei become like this you can repair your imei
     by the software boxes such as Z3X,OCTOPUS SPT ETC.
     if you want to repair your efs by octopus box, you first put your mobile into download mode and then press repair
     efs. after doing this, you should get imei like this(i.e. 004999010640000). and it is better to repair imei by
     usingz3x,octopus,spt etc.

The below is the process of how to repair efs with outbox imei using z3x.

1)first of all, download this the file N7100_repair_efs.rar if your mobile is null
2)than put your mobile into download mode and run odin select the n7100 repair efs file into PDA nd then flash it.
 yur mob still has imei null factory reset it and check or update it with official firmware 4.1.1 or 4.1.2..
if your imei is still null you have to use software box to repair efs to to get tis factory imei 004999010640000
i used octoplus to repair efs.i repaired with z3x box after getting this imei.

3)i jus t got error in the latest version, so i run samsung tool 16.1.
first jus t select the model n7100 and then press read info but you should enable use debbugging before you do this.
still if your mobile is not found, press read info again it will deduct and read the mobile.

Note: now the samsung tool 18 is also available so you can repair directly with out your cable.

4)after your mobile is read, then press repair and just write your imei.the imei of your mobile must be back side
in the battey. you must remove the mobile cover and just note your imei from the battery.


5) then check your imei repair option and then write down your imei and press ok.while doing its process it vil ask
 to cnnt uart cable. for this you must disconnt the usb and then connect usb after you will successfully get your imei.

6) If yu get Bypass MSL... error do it agin . use 510 k uart cabe .

Tested by Me 100%

Samsung Multi File Firmware Visit HERE

Samsung i9300 & N7100 Dead boot repair solution & imei null solution only for i9300

Samsung i9300 & N7100 Dead boot repair solution & imei null solution only for i9300

:: Procedure ::

* Download samsung s3 boot card maker Here

* Extract it on desktop

* Take a card reader insert memory card into the card reader and connect it to the pc

* From the extracted folder run Diskdump2.exe

* Select generic storage Device. pictures below follow it


* Now to write the scripts follow the below given picture

Now done your are succesfully created Dead boot memorycard

To continue further

:: Requerments ::

* Z3X samsung Box or SPT Box (i used z3x)

* special UART Cable (300k or 500k uartcable)

* Download teraterm-4.78 From Here

* Fully charged battery

Dead boot Reapairing procedure

* Download and extract teraterm-4.78 on desktop

* From extracted folder run ttermpro.exe there select serial port and change the serial port to z3x serial
port link below givin in the picture

* After Select The Serial Port Press Ok Button then Go To Setup Click Serial Port Option
Select Baud Rate 115200 Then Press Ok Button link below given in the picture

* Now insert the created boot card to the mobile

* Connect the Uart cable via z3x box

* Now Insert the battery and wait for 5min if the procces did not start disconnet the mobile close termpro agin try it.

* if it run success you will the result below given link this.

pit_check_integrity: invalid pit.(0x0)
pit_check_integrity: invalid pit.(0x0)
update_guid_partition_table: There is no pit binary.
fsd_reclaim 1283: MST is not recognized(mst.magic=0x0)
fsd_reclaim 1284: MST is not recognized
fsd_reclaim 1599: Error(nErr=0x0)
fsd_reclaim 1604: j4fs_rw_start is set to default value(128KB)
j4fs_open 153: Error(nErr=0x40000000)
j4fs_read_file_bootloader 355: j4fs panic
load_j4fs_param: 'param.j4fs' does not exist, make new one..
j4fs_write_file_bootloader 184: j4fs panic
fail
j4fs_read_file_bootloader 355: j4fs panic
load_j4fs_param: debug level file does not exist..*INCORRECT!*
init_fuel_gauge: battery is not detected, do not init fuelgauge
init_microusb_ic: MUIC: CONTROL1:0x1b
init_microusb_ic: MUIC: CONTROL1:0x1b
init_microusb_ic: MUIC: CONTROL2:0x3b
init_microusb_ic: MUIC: CONTROL2:0x3a
PMIC_ID = 0x2
PMIC_IRQSRC = 0x0
PMIC_STATUS1 = 0x10
PMIC_STATUS2 = 0x0
PMIC_PWRON = 0x2
PMIC_IRQ1 = 0x27
PMIC_IRQ2 = 0x0
s5p_check_keypad: keypad value=0x0
s5p_check_reboot_mode: INFORM3 = 0 ... skip
s5p_check_upload: MAGIC CODE=d1b0f038
microusb_get_attached_device: STATUS1:0x3c, 2:0x0
s5p_check_download: update mode=0
j4fs_read_file_bootloader 355: j4fs panic
s5p_check_tzsw: invalid tzsw type! dummy?
scr_draw_image: draw 'download_error.jpg'...
j4fs_read_file_bootloader 355: j4fs panic
read_param_file: 'download_error.jpg' j4fs read failed!
fimd_div:13, div:1, FB_SOURCE_CLOCK:800000000, FB_PIXEL_CLOCK:57153600
a2, 60, 90,

* if you get this error at the end [Patch Stop] This is not Rom Code. you can't fix your mobile you have to change your emmc chip

TN default
<OK>
<OK>
[DVFS] INT(1) : 0
DRAM Type : LPDDR2 8G
[DVFS] MIF(3) : 0
[EPLL][VPLL][CLK_DIV] OK
<OK>
[LOCK SW/HW]ARM:0/0 INT:0/0 G3D:0/0 MIF:0/0 SHIFT:0/0
[DVFS] ARM(0) : 5
[DVFS] INT(1) : 0
[DVFS] G3D(2) : 0
[DVFS] MIF(3) : 0
[SD_INIT
SDMMC_HighSpeedONE]
SD_READ: 20000 20000 0x40008000 -> 668484 usec
<OK>
Inp32(uAddr) : 0xea00007e
FW Booting
[Patch Stop] This is not Rom Code.

* After done this your mobile must me and download mode or white screen if white screen manually put into download mode.

* After dead boot repair mine white screen i manually put into download mode picture below

 * Now update your mobile with factory firmware with PIT file lik below given and the picture.Factory firmware Download Here

 * After update complete your mobile may not have imei .imei null or your mobile will not boot beacause of dead boot repair. your efs must be corrupted

* To Fix this problem first root your mobile Download from here (flash it through odin select as odin)

* Now Download this EfS repair file and flash it through odin select as odin your mobile must boot
but the imei become link this 004999010640000
I9300_Repair_efs.tar.rar

 * if your imei is null you can't repair using this box so 1st you have to repair the efs using above given file. if your imei become link this only (004999010640000) you can repair using z3x or other samsung tool

* Now follw the picture to repair imei problem.

* After IMEI Repair
