Samsung Core 2 G355h Charging Solution Step By Step Or Jumper Solution

Samsung Core 2 G355h Charging Solution Step By Step Schematic , Diagram , Circuit , Jumper

Samsung Core 2 G355h Charging Solution Step By Step

Step 1

Check the Battery

& TA connection

Insert the battery or TA

Step 2

Check the voltage

VBUS_5.0V_IF>= 5V?

Check C472,C473,ZD405

(short to GND or damage)

Change C472,C473,ZD405

Step 3

Check the U403

(SMD or Damage)?

Change the U403

END

Third Party Solution

HOME

Search Tags

Samsung Galaxy Core 2 G355H Charging Solution
Samsung Galaxy Core 2 G355H Not Charging Solution
Samsung Galaxy Core 2 G355H Charging Jumper Solution

Android App For This Site

Download

Samsung Usb Drivers
Samsung Android Usb Driver Download

Samsung Core 2 G355h Dead Solution Step By Step

 Samsung Core 2 G355H Dead Solution Schematic , Diagram , Circuit

Samsung Core 2 G355h Dead Solution Step By Step

Step 1

Check the battery voltage VBAT  >= 3.45 V?

NO

Change the battery

Step 2

Check the current consumption >= 100 mA?

Flash The Phone Download the latest binary. (Re Install Operating System)

Step 3

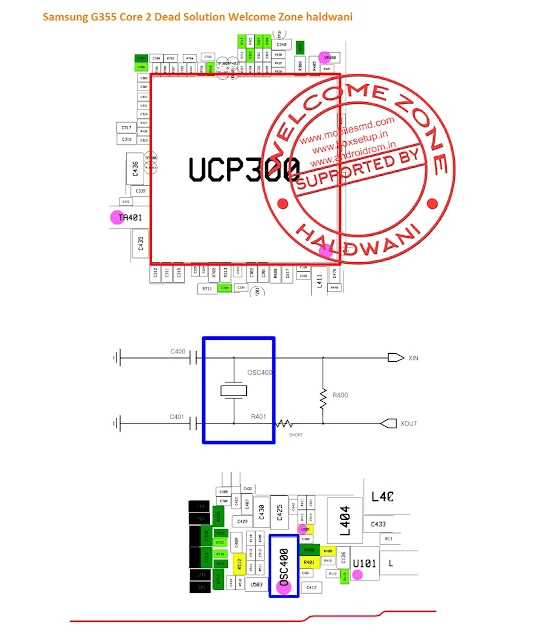

Check CLK in OSC400 PIN =32.768k Hz?

Change OSC400 or PBA
